Place of Origin: | China |
Brand Name: | Vibrating Screen Machine |
Certification: | ISO9001 |
Model Number: | Vitrating Screen Machine |
Minimum Order Quantity: | 1 Sets |
---|---|
Price: | USD33000-USD40900 |
Packaging Details: | 1.Outside: wooden cartons 2. Inside: plastic bag. 3. According customer's require. |
Delivery Time: | 15-20 DAYS AGAINEST PI |
Payment Terms: | T/T 50% as deposit , balance before delivery |
Supply Ability: | 100 SETS PER MONTH |
Material: | Carbon Steel/ Stainless Steel 304 |
Transducer: | Offset |
Delivery Lead time: | 10-15 Days |
Characteristic: | Chemical, Seeds, Food, Medicinal |
OEM & ODM: | Is Accept |
Application: | Building Material Shops, Manufacturing Plant, Food & Beverage | Voltage: | 220V/380V/415V/450V |
---|---|---|---|
Power: | 1.5kw | Size: | 3600*2000*2000mm |
Color: | Customized | Service: | 12 Months |
Motor: | Vertical Vibrating Motor | Laryer: | 1-11Layer |
Frequency: | 50 Or 60Hz | Capacity: | 10-30T/h |
Function: | Sorting By Size | After-sales Service Provided:: | No Overseas Service Provided |
Type: | Linear | Weight: | 12000-25000kg |

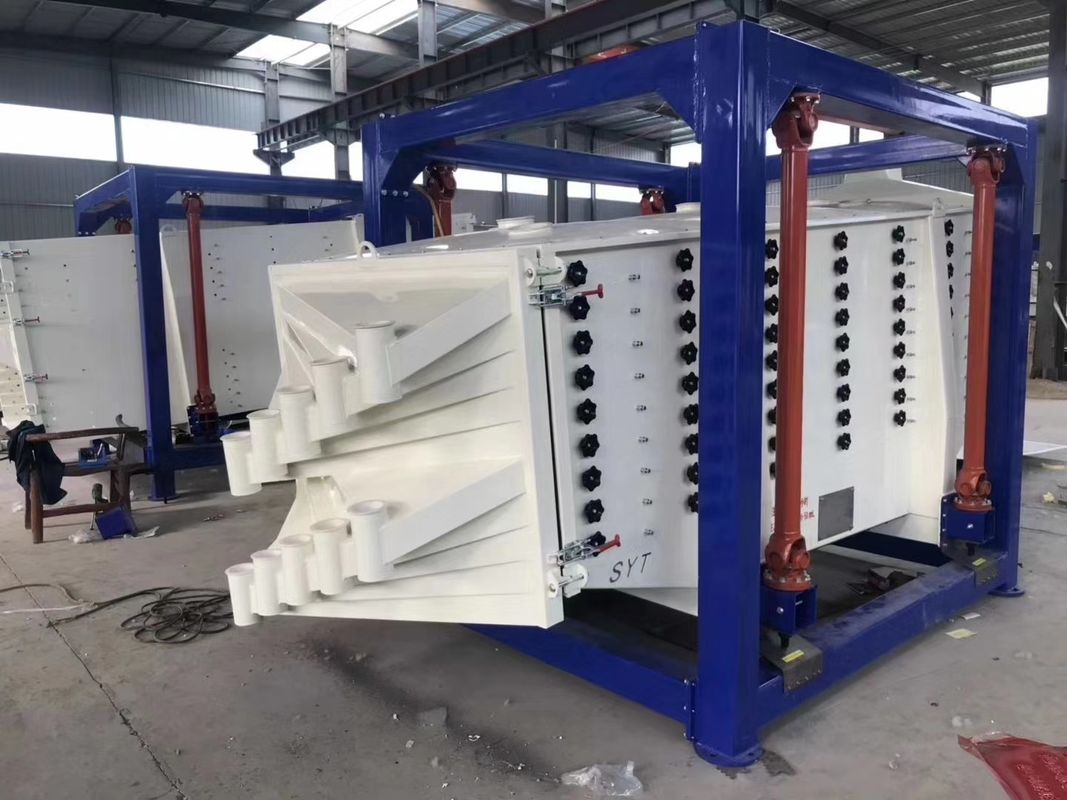

This equipment is a super-square tumbler screen (SYT-FYBS) model developed and produced by our company with a hanging structure. It has applied for a number of national protection patents and is leading the industry. The screen mesh frame and the screen mesh installation method adopt a unique and innovative design, and the installation is very convenient. Usually 9-layer design, can be divided into 10 grades at one time, or 4 layers + 4 layers equivalent to 2 sets sieve machine, or 2 layers + 2 layers + 2 layers equivalent to 3 sets sieve machine Or designed as 1 layer +1 layer +1 layer +1 layer +1 layer is equivalent to 5 sets sieve machines.
Model | Screen Size | Screening area | Layers | Power | Number of truns | Case travel | |
EC-CV-1535 | 1.5*3.5m | 4.5-9m2 | 1-9 | 5.5kw | 180-260 | 25-60mm |
Features of sand screening machine
1,Large production capacity, unique multi-layer grading design, one machine is divided into two groups, one is used in multiple units, the production capacity doubles.
2,The fully enclosed structure, the dust is not flying, the sieve machine has low vibration and low noise, and It to meets environmental protection requirements.
3,Flexible screening, the acceleration is 4-5 times lower than that of ordinary vibrating screen, and the service life is increased, thus reducing maintenance costs.
4,Changing the screen mesh is more convenient, simple to operate, firm and reliable.
5,Large electrostatic spray molding process, the equipment is more beautiful, wear-resistant and rust-proof.
6,It has applied for a number of national protection patents and is leading the industry.
Application
Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, etc.
Metallurgy and mining industry: quartz sand, ore, meteorite,garnet, etc.
Mechanical industry: casting sand, powder metallurgy, electromagnetic material andmetal powder, etc.
Installation and commissioning:
( One) equipment shall have a stable foundation. When the device is installed in the normal ground or cement base , you can not set the anchor bolts. When the device is installed in the steel gantry above , the application of bolt on steel body and steel gantry should have some rigidity . The machine just a phase switch ( Note : It is best to use electrical control panel ) , with snakeskin pipe threading , the motor can be connected to the power supply , pay attention to the electrical control panel should be mounted to a wall hanging .
( Two ) device is shipped with the screen properly installed , the process of using screen replacement can replace themselves .
( Three ) before starting , you should first check the tightness of the bolts , and the discharge port positions are aligned with the catcher , and observe whether the normal rotational vibration motor and the spring force without obstruction, check the layer mesh is pressed .
( Four ) when vibration sieve access electrical control panel , you should first check the electrical control panel . Observed after the line is connected vibration motor rotation direction is clockwise ( Note: The phase sequence should be changed otherwise ) is functioning properly, there is no different from noise.
( Five ) adjustable upper and lower eccentric vibration motor phase angle to accommodate a variety of materials screening situation .

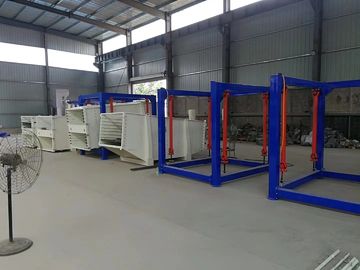

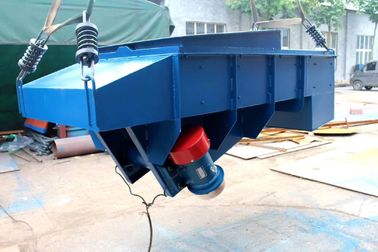

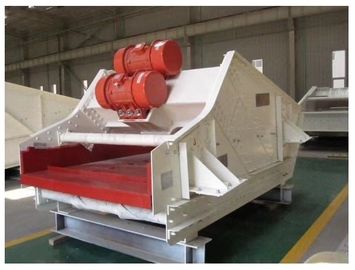

Detailed Images
1 SET/ POLYWOOD CASE
