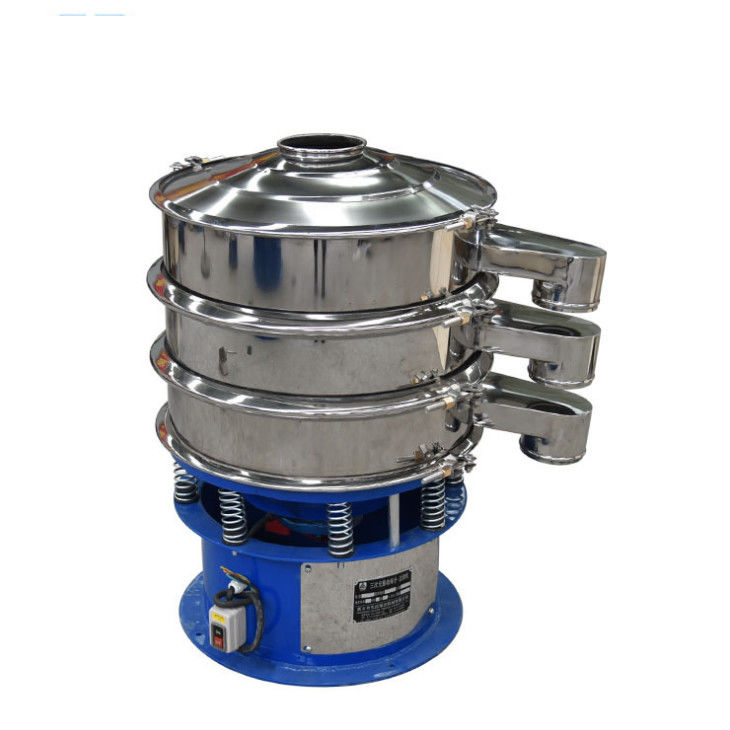

EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic Circular Vibratory Screen

EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic Circular Vibratory Screen

    • EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory Screen
    • EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory Screen
    • EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory Screen
    • EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory Screen
    • EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory Screen
  • EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory Screen

    Product Details:

    Place of Origin: China
    Brand Name: Vibrating Screen Machine
    Certification: ISO9001
    Model Number: Vitrating Screen Machine

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Sets
    Price: USD10000-USD50000
    Packaging Details: 1.Outside: wooden cartons 2. Inside: plastic bag. 3. According customer's require.
    Delivery Time: 15-20 DAYS AGAINEST PI
    Payment Terms: T/T 50% as deposit , balance before delivery
    Supply Ability: 1000 SETS PER MONTH
    Material: Carbon Steel/ Stainless Steel 304
    Transducer: Offset
    Delivery Lead time: 10-15 Days
    Characteristic: Chemical, Seeds, Food, Medicinal
    OEM & ODM: Is Accept
    Contact Now
    Detailed Product Description
    Application: Titanium Voltage: 380V
    Power: 1.5kw Size: Different Item With Different Size
    Color: Customized Service: 12 Months
    Motor: Vertical Vibrating Motor Laryer: 1-5 Layer
    Frequency: 50HZ/60Hz/Optional Capacity: 10Kg-10Tons/hour
    Function: Screening\separation\sorting\sieving Keyword: Vibratory Screen
    Usage: Fine Particles Screening After-sales Service Provided:: No Overseas Service Provided

    EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic Circular Vibratory Screen

    EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory Screen

    Product Description

      Rotary Vibrating Screen is a high-precision powder griddle, low noise, high efficiency, quick changer takes 3-5 minutes, totally enclosed structure, for grain, flour, mucus and other materials screening filter. Rotary Vibrating Screen is a motor for vertical excitation source, the motor and lower eccentric weight installed at both ends of the motor rotary motion into a horizontal, vertical, inclined three elementary motions, then the movement passed to the screen surface . Adjust the upper and lower ends of the phase angle, the material can change the trajectory of the screen surface

    EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory Screen

    Structure

    EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory Screen



    Feauture

    1 high efficiency, compact design and durability, any powder and mucus can be screening.
    2 changer is easy, simple, easy to clean.
    3 mesh is not blocked, the powder does not fly, can be screened to 600 mesh 0.018mm
    4unique grid design, screen used for a long time for network speed, screen up to 7 layers.
    5 impurities, coarse material discharged automatically, you can continuous work.
    6 low energy consumption, maintenance is simple, without foundation installation.

    Principle

    Rotary Vibrating Screen is a high-precision powder griddle, low noise, high efficiency, quick changer takes 3-5 minutes, totally enclosed structure, for grain, flour, mucus and other materials screening filter. Rotary Vibrating Screen is a motor for vertical excitation source, the motor and lower eccentric weight installed at both ends of the motor rotary motion into a horizontal, vertical, inclined three elementary motions, then the movement passed to the screen surface . Adjust the upper and lower ends of the phase angle, the material can change the trajectory of the screen surface.





    Application

    1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
    2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
    3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice,
    4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. Ultrasonic Vibrating Screen
    5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

    EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory Screen




    Technical parameters
    Model Diameter(mm) Mesh area per deck (M2) Mesh Size (mesh) Layers Vibration motor (KW)
    EC-400 Ø340 0.09 2-500 1-5 0.18
    EC-600 Ø540 0.23 2-500 1-5 0.55
    EC-800 Ø740 0.43 2-500 1-5 0.75
    EC-1000 Ø900 0.66 2-500 1-5 1.1
    EC-1200 Ø1100 1 2-500 1-5 1.5
    EC-1500 Ø1400 1.58 2-500 1-5 1.5
    EC-1800 Ø1700 2.32 2-500 1-5 2.2
    EC-2000 Ø1920 2.8 2-500 1-5

    2.2



    Installation and commissioning:
    ( One) equipment shall have a stable foundation. When the device is installed in the normal ground or cement base , you can not set the anchor bolts. When the device is installed in the steel gantry above , the application of bolt on steel body and steel gantry should have some rigidity . The machine just a phase switch ( Note : It is best to use electrical control panel ) , with snakeskin pipe threading , the motor can be connected to the power supply , pay attention to the electrical control panel should be mounted to a wall hanging .
    ( Two ) device is shipped with the screen properly installed , the process of using screen replacement can replace themselves .
    ( Three ) before starting , you should first check the tightness of the bolts , and the discharge port positions are aligned with the catcher , and observe whether the normal rotational vibration motor and the spring force without obstruction, check the layer mesh is pressed .
    ( Four ) when vibration sieve access electrical control panel , you should first check the electrical control panel . Observed after the line is connected vibration motor rotation direction is clockwise ( Note: The phase sequence should be changed otherwise ) is functioning properly, there is no different from noise.
    ( Five ) adjustable upper and lower eccentric vibration motor phase angle to accommodate a variety of materials screening situation .



    Detailed Images



    EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory ScreenEC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory ScreenEC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory ScreenEC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory ScreenEC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory ScreenEC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory ScreenEC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory ScreenEC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory ScreenEC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory ScreenEC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory ScreenEC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory ScreenEC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory ScreenEC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory ScreenEC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory Screen

    EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory Screen


    Packaging & Shipping

      1 SET/ POLYWOOD CASE


    EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory Screen

    Our Services


      We mainly export  Vibrating machine, Lifting machine, mainly  in
    powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate Field.


    Company Information


    1. We have very more experience in  export business.
    2. All of our products comply with international quality standards.
    3.We can do customer’s design and requirement
    4. We mainly export to Europe , Americal , South Americal, Africa, the Middle East. Australia, New Zealand etc.
    EC-CV-38 Good quality 1-5 Layers Customized Titanium Industry Series Ultrasonic  Circular Vibratory Screen



    FAQ


    • QWhat is the MOQ ?
    • A1 Set per item
    • QCan I get a lower price if I order large quantities?
    • AYes, cheaper prices with more bigger size orders.
    • QCan I add or delete items from my order if I change my mind ?
    • AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change
      it. It is about 2 days after confirming the order.
    • QWhen you ship my order?
    • ANormally 7-10days after receiving your payment, but it can be negotiated based on order qty and production schedule.
    • QHow about the quality guarantee period?
    • AOne year!
    • QHow can you guarantee the production quality ?
    • AWe have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
