    Product Details:

    Place of Origin: China
    Brand Name: ECHO
    Certification: ISO9001
    Model Number: ECHO-L-20030209

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Sets
    Price: US2500-USD4000
    Packaging Details: 1.Outside: wooden cartons 2. Inside: plastic bag. 3. According customer's require.
    Delivery Time: 20-30 DAYS AGAINEST PI
    Payment Terms: T/T 50% as deposit , balance before delivery
    Supply Ability: 1000 SETS PER MONTH
    Material: Carbon Steel/ Stainless Steel 304
    Transducer: Offset
    Delivery Lead time: 10-15 Days
    Characteristic: Chemical, Seeds, Food, Medicinal
    OEM & ODM: Is Accept
    Contact Now
    Detailed Product Description
    Application: Original Honey Processing Voltage: 220V/380V
    Power: 18kw Size: 1750*660*1660mm
    Color: Stainless Steel Color Service: 12 Months
    Capacity: 1.2-1.5t/hour Usage: Honey Extrator
    Automatic Grade:: Automatic Material:: 304 Stainless Steel

    Honey processing equipment / bee honey thickener / honey dewater machine

    Honey processing equipment / bee honey thickener / honey dewater machine

    Product Description

    Honey processing equipment / bee honey thickener / honey dewater machine


    Production details



    Features for 2 ton Honey concentrator in honey processing machines

    1)The equipment are made of 304 stainless steel, easy to operate, reliable, efficient, vacuum honey, can achieve high vacuum and low temperature concentrate, it is the ideal equipment for honey processing equipment

    2)Apparatus comprising: pre-heating tank, filter, concentrate tank, a condenser, a vacuum pump

    3)Machine principle: completely function, this machine can pump vacuum, melt crystal, filter sterilizing, fast cooling, continuous batching charging, continuous charging.

    4)this machine has advanced inside and outside cover and honey recycle pipe which material is SS304

    5)This machine has evaporator, pre-heating pot, separators, filter, concentrate port, vacuum pump and so on

    6) This kind of vacuum thickener machine is mainly designed for honey thickener or some other heat sensitivity materials.



    About 2 ton Honey concentrator in honey processing machines

    1)This is a kind of small batch type thickening equipment. The machine made of stainless steel of 304.

    2)The machine can reach high vacuity and lower thickening temperature. After concentrating the materials will not change color, not change flavor, the quality of materials after concentrating will be very good.

    3)Good designed of the structure make the machine small, low noise, easy to operate.

    5)honey thickener vacuum concentrator to increase the concentration of honey



    2 ton Honey concentrator in honey processing machines Technical Parameters:

    Model KN200 KN300 KN400
    Output capacity(ton) 2 3 4
    Production capacity is according to per hour increase four Baume degree
    Voltage(V) 380 380 380
    Power(KW) 26.75 32.95 4
    Actual power consumption(Kw) 22 28 4
    Concentration temperature ≤50 ≤50 ≤50

    Vacuum degree

    (Mpa)

    ≥0.092 ≥0.092 ≥0.092
    Preheat Tank Capacity(L) 200 300 400
    Concentrated Tank Capacity(L) 200 300 400
    Heating Electric heating Electric heating Steam or hot water
    Dimensions(M) 2*0.8*2.1 2*0.86*2.3 2*0.86*2.4



    Heater, concentrated cans, water jet vacuum device, working platform components.



    2 ton Honey concentrator in honey processing machines detail machine:

    Item Name Model Introduction
    1 Honey melting pool 6 bottles

    Within 1.2 meters long, 0.9 meters wide, 0.9 meters high, once put six plastic bucket filled with 75 kg. Electric heating, voltage 380V, power 18KW, with a temperature

    Control device,the cell body of stainless steel, thickness 2mm, barrel racks for

    40 × 40mm square stainless steel.

    2 Coarse honey filter   Within one meter long, 0.8 meters wide and 0.6 meters high, set coarse filter, barrel racks,coarse strainer for stainless steel mesh, thick 1mm, aperture 5mm. 304 stainless steel material of the cell body,2mm thick
    3 Pump G38

    PCP, the coarse filter in raw honey preheat tank pumped concentrator, voltage 380V,

    power 2.2KW,diameter 38mm

    4 Honey concentrator ZDN200

    Middle class 2 tons, thickener voltage 380V, total power 27KW (preheat tank electric heating 12KW,cans condensed electric heating 12KW, pump 2.2KW, stirring motor 0.55KW), the device includes a preheat tank, filter, concentrate tank, condensate

    devices, vacuum pumps, electric control boxes, mounting platform.A capacity

    of 240 kg, preheat tank and the tank capacity is concentrated, like 40-45 minutes to raise four,Baume,concentrate temperature at about 40 ℃, vacuum degree -0.094 above, the actualpower consumptionof about 25 degrees, honey using warm water bath.

    Contact with the honey portion 304 stainless steel,a thickness of 3mm. Size: 3.2 meters long, one meter wide and 2.2 meters high

    5 Pump G38 Pump, the concentrated finished product tank pumped honey, voltage 380V, power 1.1KW,caliber 38mm
    6

    Finished honey

    storage tank

    CPG300 Capacity of 300 kg, single, without stirring heated, stainless steel 304 material, thickness 2mm,mirror polishing.
    7

    Honey Filling

    Machine

    YT1T1000

    Pneumatic filling machine, filling range 100-1000ml, error 2-3ml, single head, filling

    speed 600 bottles / hour (500ml per bottle as a benchmark), pump reprovision.

    8 Table conveyors SJJ6 Total length of 6.3 m, 0.72 m wide and 0.85 m high, conveyor speed adjustable, 1-6 meters per minute
    9 Sealer DGYF500 Handheld sealing machine, sealing diameter of 20-100mm, aluminum bottle sealed
    10

    Printed code

    machine

    JB320 Production date, the disc printed code, effective code printing 3-year period.



    Application:

    Honey processing equipment / bee honey thickener / honey dewater machine

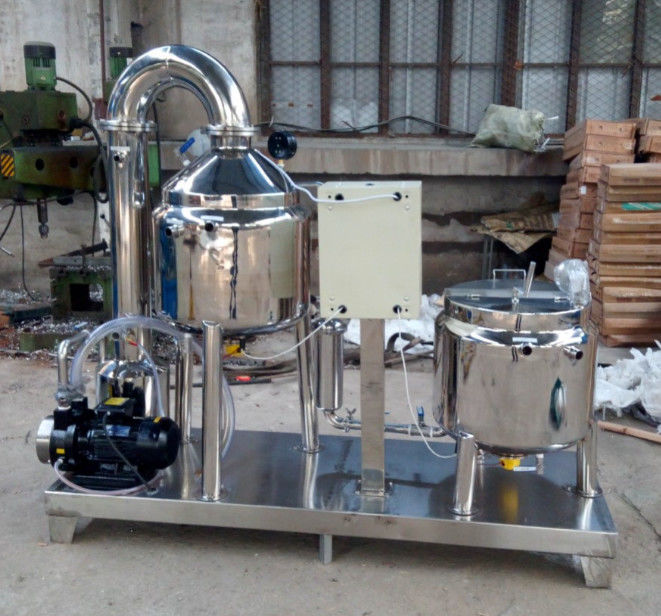

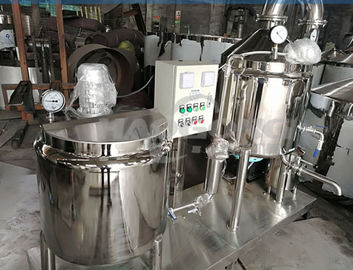

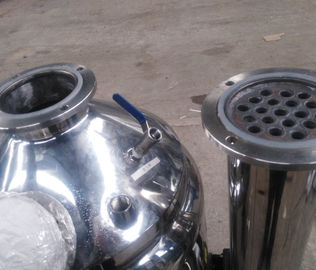

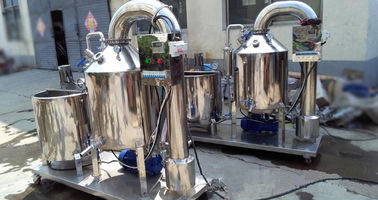

    Detailed Images

    Honey processing equipment / bee honey thickener / honey dewater machineHoney processing equipment / bee honey thickener / honey dewater machineHoney processing equipment / bee honey thickener / honey dewater machineHoney processing equipment / bee honey thickener / honey dewater machineHoney processing equipment / bee honey thickener / honey dewater machineHoney processing equipment / bee honey thickener / honey dewater machineHoney processing equipment / bee honey thickener / honey dewater machineHoney processing equipment / bee honey thickener / honey dewater machine


    Packaging & Shipping

      1 SET/ POLYWOOD CASE




    Our Services


      We mainly produce and export  Grain Machine ,Vibrating machine, Lifting machine, mainly  in
    powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate Field.


    Company Information


    1. We have very more experience in  export business. We have our own factory to produce machines.
    2. All of our products comply with international quality standards.
    3.We can do customer’s design and requirement
    4. We mainly export to Europe , Americal , South Americal, Africa, the Middle East. Australia, New Zealand etc.




    FAQ


    • QWhat is the MOQ ?
    • A1 Set per item
    • QCan I get a lower price if I order large quantities?
    • AYes, cheaper prices with more bigger size orders.
    • QCan I add or delete items from my order if I change my mind ?
    • AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change
      it. It is about 2 days after confirming the order.
    • QWhen you ship my order?
    • ANormally 7-10days after receiving your payment, but it can be negotiated based on order qty and production schedule.
    • QHow about the quality guarantee period?
    • AOne year!
    • QHow can you guarantee the production quality ?
    • AWe have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
