| Place of Origin: | China |
| Brand Name: | Vibrating Screen Machine |
| Certification: | ISO9001 |
| Model Number: | Vitrating Screen Machine |
| Minimum Order Quantity: | 1 Sets |
|---|---|
| Price: | USD10005-USD50005 |
| Packaging Details: | 1.Outside: wooden cartons 2. Inside: plastic bag. 3. According customer's require. |
| Delivery Time: | 15-20 DAYS AGAINEST PI |
| Payment Terms: | T/T 50% as deposit , balance before delivery |
| Supply Ability: | 1000 SETS PER MONTH |
| Material: | Carbon Steel/ Stainless Steel 304 |
| Transducer: | Offset |
| Delivery Lead time: | 10-15 Days |
| Characteristic: | Chemical, Seeds, Food, Medicinal |
| OEM & ODM: | Is Accept |
| Application: | Zinc Oxide | Voltage: | 380V |
|---|---|---|---|
| Power: | 1.5kw | Size: | Different Item With Different Size |
| Color: | Customized | Service: | 12 Months |
| Motor: | Vertical Vibrating Motor | Laryer: | 1-5 Layer |
| Frequency: | 50HZ/60Hz/Optional | Capacity: | 10Kg-10Tons/hour |
| Function: | Screening\separation\sorting\sieving | Keyword: | Vibratory Screen |
| Usage: | Fine Particles Screening | After-sales Service Provided:: | No Overseas Service Provided |

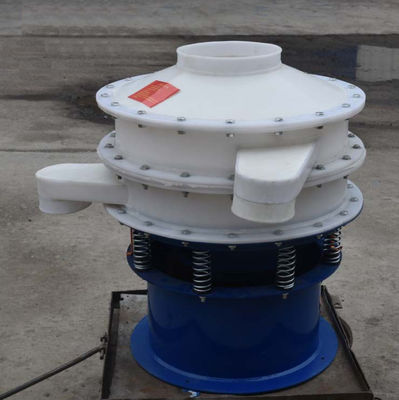

Rotary Vibrating Screen is a high-precision powder griddle, low noise, high efficiency, quick changer takes 3-5 minutes, totally enclosed structure, for grain, flour, mucus and other materials screening filter. Rotary Vibrating Screen is a motor for vertical excitation source, the motor and lower eccentric weight installed at both ends of the motor rotary motion into a horizontal, vertical, inclined three elementary motions, then the movement passed to the screen surface . Adjust the upper and lower ends of the phase angle, the material can change the trajectory of the screen surface
Structure
Feauture
1 high efficiency, compact design and durability, any powder and mucus can be screening.
2 changer is easy, simple, easy to clean.
3 mesh is not blocked, the powder does not fly, can be screened to 600 mesh 0.018mm
4unique grid design, screen used for a long time for network speed, screen up to 7 layers.
5 impurities, coarse material discharged automatically, you can continuous work.
6 low energy consumption, maintenance is simple, without foundation installation.
Principle
Rotary Vibrating Screen is a high-precision powder griddle, low noise, high efficiency, quick changer takes 3-5 minutes, totally enclosed structure, for grain, flour, mucus and other materials screening filter. Rotary Vibrating Screen is a motor for vertical excitation source, the motor and lower eccentric weight installed at both ends of the motor rotary motion into a horizontal, vertical, inclined three elementary motions, then the movement passed to the screen surface . Adjust the upper and lower ends of the phase angle, the material can change the trajectory of the screen surface.
Application
1) Chemical industry: resin pigment, medicine, grease, paint, palette, etc.
2) Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.
3) Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice,
4) Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. Ultrasonic Vibrating Screen
5) Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.
| Model | Diameter(mm) | Mesh area per deck (M2) | Mesh Size (mesh) | Layers | Vibration motor (KW) |
| EC-400 | Ø340 | 0.09 | 2-500 | 1-5 | 0.18 |
| EC-600 | Ø540 | 0.23 | 2-500 | 1-5 | 0.55 |
| EC-800 | Ø740 | 0.43 | 2-500 | 1-5 | 0.75 |
| EC-1000 | Ø900 | 0.66 | 2-500 | 1-5 | 1.1 |
| EC-1200 | Ø1100 | 1 | 2-500 | 1-5 | 1.5 |
| EC-1500 | Ø1400 | 1.58 | 2-500 | 1-5 | 1.5 |
| EC-1800 | Ø1700 | 2.32 | 2-500 | 1-5 | 2.2 |
| EC-2000 | Ø1920 | 2.8 | 2-500 | 1-5 |
2.2 |
Installation and commissioning:
( One) equipment shall have a stable foundation. When the device is installed in the normal ground or cement base , you can not set the anchor bolts. When the device is installed in the steel gantry above , the application of bolt on steel body and steel gantry should have some rigidity . The machine just a phase switch ( Note : It is best to use electrical control panel ) , with snakeskin pipe threading , the motor can be connected to the power supply , pay attention to the electrical control panel should be mounted to a wall hanging .
( Two ) device is shipped with the screen properly installed , the process of using screen replacement can replace themselves .
( Three ) before starting , you should first check the tightness of the bolts , and the discharge port positions are aligned with the catcher , and observe whether the normal rotational vibration motor and the spring force without obstruction, check the layer mesh is pressed .
( Four ) when vibration sieve access electrical control panel , you should first check the electrical control panel . Observed after the line is connected vibration motor rotation direction is clockwise ( Note: The phase sequence should be changed otherwise ) is functioning properly, there is no different from noise.
( Five ) adjustable upper and lower eccentric vibration motor phase angle to accommodate a variety of materials screening situation .
Detailed Images
1 SET/ POLYWOOD CASE
We mainly export Vibrating machine, Lifting machine, mainly in
powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate Field.
1. We have very more experience in export business.
2. All of our products comply with international quality standards.
3.We can do customer’s design and requirement
4. We mainly export to Europe , Americal , South Americal, Africa, the Middle East. Australia, New Zealand etc.
