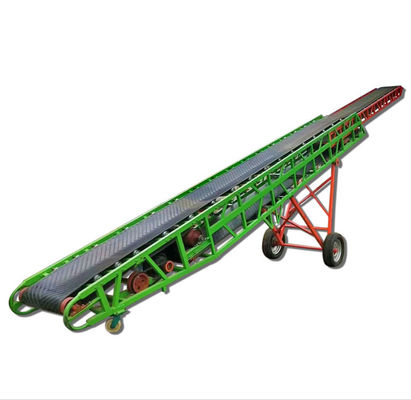

Customized Portable Adjustable Movable Standard Belt conveyors For Wood Waste

Customized Portable Adjustable Movable Standard Belt conveyors For Wood Waste

    • Customized Portable Adjustable Movable  Standard Belt conveyors For Wood Waste
    • Customized Portable Adjustable Movable  Standard Belt conveyors For Wood Waste
    • Customized Portable Adjustable Movable  Standard Belt conveyors For Wood Waste
    • Customized Portable Adjustable Movable  Standard Belt conveyors For Wood Waste
    • Customized Portable Adjustable Movable  Standard Belt conveyors For Wood Waste
    • Customized Portable Adjustable Movable  Standard Belt conveyors For Wood Waste
    • Customized Portable Adjustable Movable  Standard Belt conveyors For Wood Waste
    • Customized Portable Adjustable Movable  Standard Belt conveyors For Wood Waste
  • Customized Portable Adjustable Movable  Standard Belt conveyors For Wood Waste

    Product Details:

    Place of Origin: China
    Brand Name: ECHO
    Certification: ISO9001
    Model Number: Conveyor-123

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Sets
    Price: USD1000-USD3000
    Packaging Details: 1.Outside: wooden cartons 2. Inside: plastic bag. 3. According customer's require.
    Delivery Time: 10-15 DAYS AGAINEST PI
    Payment Terms: T/T 40% as deposit , balance before delivery
    Supply Ability: 1000 SETS PER MONTH
    Contact Now
    Detailed Product Description
    Condition: New Type: Screw Conveyor
    Material: Carbon Steel Material Feature: Heat Resistant
    Structure: Conveyor System Load Capacity: Strong
    Voltage: 220/380V Dimension(L*W*H): Customized Size
    Warranty: 12 Months Usage: Conveying
    Feature: Simple Operation Motor: China Standard Motor
    Application: Chemical/ Food / Industrial Etc. Industry Frame Material: Stainless Steel/Carbon Steel
    Capacity: 10Kg-10Tons/hour After-sales Service Provided:: No Overseas Service Provided

    Customized Portable Adjustable Movable Standard Belt conveyors For Wood Waste



    Customized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood Waste



    Technical Parameters



    1:Mobile belt conveyor can be used on any sites, It can work indoor or outdoor, but should reduce the working time in rainy days.

    2: Easy to mobile, in general speaking, A man can drive it easily. Can be directly loading operations, material handling.

    3: Easy to operate, this machine including the electric cabinet, and one master switch, one lift and down switch.



    Technical data:

    Belt Width

    (mm)

    Belt Length(m) / Power(kw)

    Belt Speed

    (m/s)

      ≤12/1.5 12-20/2.2 20-25/3 0.8-2
    500 ≤12/3 12-20/4 20-30/5.5 0.8-2
    650 ≤12/4 12-20/5.5 20-30/7.5 0.8-2
    800 ≤10/4 10-15/5.5 15-25/7.5 1.0-2
    1000 ≤10/5.5 10-20/7.5 20-25/11 1.0-2
    1200 ≤10/7.5 10-20/11 20-25/15 1.0-2



    Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.



    Opearting principle:

    Belt conveyor mainly composed by two endpoints drum and closed belt . Driven conveyor belt rotating drum called the drive roller ( rotate roller ) ; another change the direction of

    movement of the conveyor belt rollers is called bend pulley only . The drive rollers by a motor through a speed reducer driven conveyor belt to rely on the friction drag between the drive

    rollers and the conveyor belt . The drive rollers ships are mounted at the discharge end , to increase the traction, and is conducive to drag . Material from the feed end of the feeding ,

    falls rotating conveyor belt , relying on the discharge end of conveyor belt friction driven transport bag unloading



    Usage:

    Brewing

    Screw conveyors are used for grain and hops conveying and storage. Special leveling screws can improve storage capacity and efficiency.

    Pulp & Paper

    Screw presses, mixers and screw conveyors are used for handling paper pulp, wood waste, sawdust, bark chips, wood chips and lime. Mass-flow hoppers and feeder screws are often required.

    Mining & Power Production

    Screws are used for feeding, conveying, mixing and blending salt, coal, lime and other materials. Hollow flight screws and jacketed troughs are often used to cool fly ash after coal is burned. Corrosive salts and wet coal typically require stainless steel materials.

    Meat Processing/Rendering

    Stainless steel screw conveyors are used for all material handling. This is an ideal application because the product is contained and equipment can be easily washed down.

    Sugar

    Screw conveyors are used to move both wet and dry sugar products throughout the plant. Large screw presses are used to squeeze juice from sliced sugar beets.

    Wastewater Treatment

    Post separation from liquids, solids are often conveyed using shaftless 304SS screws which are a very good fit for sticky, gritty, wet materials. Inclined screw conveyors are also often employed to move materials to elevated areas.

    Dairy

    We have designated areas of our plant for the productions of high quality, 3-A sanitary screw conveyors and mixers for the dairy industry. We also employ even higher QC inspection standards for this type of equipment

    Other Industries

    Ice, pharmaceuticals, abrasives, contaminated soil, sand, cement, cottonseed, hay, and rice are just a few of the many other products that we have designed screw conveyors and mixers to handle.



    Screw Conveyor Advantages

    Screw Conveyors are versatile and can be employed in horizontal, inclined and vertical installations as well as multiple screw Live Bottom Feeders.

    Screw Conveyors can be sealed for dust free and vapor tight requirements.

    A Screw Conveyor can be used for heating and cooling products by utilizing jacketed housings and/or hollow flight screws.

    Screw Conveyors can be made out of a variety of materials to make them corrosion resistant, abrasion resistant or heat resistant depending upon the product being conveyed.

    They can be outfitted with multiple discharge points offering greater system design flexibility.

    A Screw Conveyor can be used as a mixer or agitator to blend dry or fluid ingredients, provide crystallization or coagulant action or maintain solutions in suspension.

    Stainless Steel Screw Conveyors can be manufactured to conform to USDA and FDA food grade regulations.

    They are compact and easily adapted to congested locations.

    Screw Conveyors are often more cost effective than other material handling options such as belt, pneumatic and drag conveyors.

    They can be set up as Screw Feeders to control the flow of material in processing operations which depend upon accurate batching.

    .



    Production details

    Customized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood Waste



    Customized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood WasteCustomized Portable Adjustable Movable  Standard Belt conveyors For Wood Waste














    Packaging & Shipping

      1 SET/ POLYWOOD CASE


    Customized Portable Adjustable Movable  Standard Belt conveyors For Wood Waste

    Our Services


      We mainly export  Vibrating machine, Lifting machine, mainly  in
    powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate Field.


    Company Information


    1. We have very more experience in  export business.
    2. All of our products comply with international quality standards.
    3.We can do customer’s design and requirement
    4. We mainly export to Europe , Americal , South Americal, Africa, the Middle East. Australia, New Zealand etc.
    Customized Portable Adjustable Movable  Standard Belt conveyors For Wood Waste



    FAQ


    • QWhat is the MOQ ?
    • A1 Set per item
    • QCan I get a lower price if I order large quantities?
    • AYes, cheaper prices with more bigger size orders.
    • QCan I add or delete items from my order if I change my mind ?
    • AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change
      it. It is about 2 days after confirming the order.
    • QWhen you ship my order?
    • ANormally 7-10days after receiving your payment, but it can be negotiated based on order qty and production schedule.
    • QHow about the quality guarantee period?
    • AOne year!
    • QHow can you guarantee the production quality ?
    • AWe have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
