| Place of Origin: | China |
| Brand Name: | Echo |
| Certification: | ISO9001 |
| Model Number: | EV-2 |
| Minimum Order Quantity: | 1 Sets |
|---|---|
| Price: | USD309-USD986 |
| Packaging Details: | 1.Outside: wooden cartons 2. Inside: plastic bag. 3. According customer's require. |
| Delivery Time: | 7-10DAYS AGAINEST PI |
| Payment Terms: | T/T 30% as deposit , balance before delivery |
| Supply Ability: | 1000 SETS PER MONTH |
| Material: | Carbon Steel/ Stainless Steel 304 |
| Transducer: | Offset |
| Delivery Lead time: | 10-15 Days |
| Characteristic: | Chemical, Seeds, Food, Medicinal |
| OEM & ODM: | Is Accept |
| Application: | Ultrasonic Vibrating Sieve | Type: | Circular |
|---|---|---|---|
| Power: | 220V~240V50/60HZ | Size: | 345mm*320mm*145mm |
| Color: | Customized | Service: | 12 Months |
| Effect Feature: | 1-5 Layers | Working Mode: | Continuous |
| Adjustment Range: | 50~100% | Temperature: | 45°C |

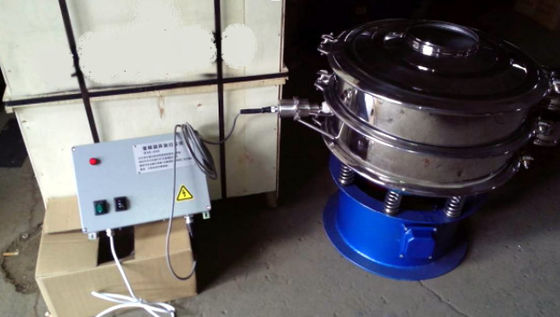

2022 High Frequency Powder Circular Steel Ultrasonic vibrating sieve with CE
Ultrasonic Rotary Vibrating Working Principle
Screens a practical and reliable screening system, which is developed by our company to resolve the current mesh plug problems’ most effective solution. Ultrasonic Vibrating Screen is composed of ultrasonic power, transducer and sympathetic vibration ring. Transducers change the high frequency current which supplied by the ultrasonic power into sinusoidal vertical wave of oscillation (ultrasonic wave), these ultrasonic wave reached the sympathetic vibration ring generate
resonance, then evenly transferred to the screen surface.
Sieve materials while doing the low-frequency vibration, superimposed on the ultrasonic vibration, it can not
only avoid the mesh plug, but also can improve product capacity and quality greatly.
Features:
A. The mesh does not block and it cab self-cleaning.
B. Bouncing balls and blocking device do not need.
C. Long service working life.
D. Ultrasonic Vibrating Screen is suitable for screening 40-635 mesh size, especially above 300 mesh.
E. The Sieve size can improve 1-70% and the capacity can improve maximum up to 10 times.
F. Ultrasonic Rotary Vibrating Screen has high screening efficiency, solve screening problems effectively
Such as strong adsorption, easy reunion, high electrostatic, high density, light proportion etc.
Application:
Ultrosonic Rotary Vibrating Screen
is widely used in metallurgy powder, electromagnetic materials, metal powder, iron powder, zinc oxide, alumina powder, alloy powder, molybdenum powder, cobalt powder, carborundum, copper, nickel powder, silica powder, titanium oxide, tungsten carbide, tungsten powder, titanium powder , stainless steel powder etc.
Technical Parameters
| Ultrasonic Vibrating Screen Technical Parameters | |||
| Frequency | 34KHz | Overall Dimension | 345mm*320mm*145mm |
| Power | 220V~240V50/60HZ | IP Code | IP55 |
| Working Mode | Continuous | Adjustment Range | 50~100% |
| Temperature | 45°C | Transducer | Offset |
1 SET/ POLYWOOD CASE
We mainly export Vibrating machine, Lifting machine, mainly in
powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate Field.
1. We have very more experience in export business.
2. All of our products comply with international quality standards.
3.We can do customer’s design and requirement
4. We mainly export to Europe , Americal , South Americal, Africa, the Middle East. Australia, New Zealand etc.
