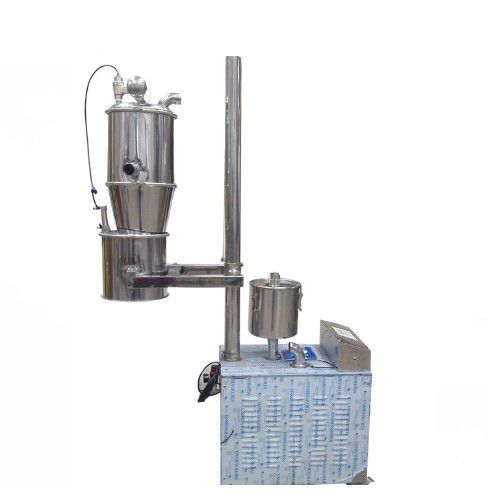

304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine

304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine

    • 304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine
    • 304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine
    • 304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine
    • 304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine
  • 304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine

    Product Details:

    Place of Origin: China
    Brand Name: ECHO
    Certification: ISO9001
    Model Number: Conveyor-3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Sets
    Price: USD1470-USD3970
    Packaging Details: 1.Outside: wooden cartons 2. Inside: plastic bag. 3. According customer's require.
    Delivery Time: 10-15 DAYS AGAINEST PI
    Payment Terms: T/T 50% as deposit , balance before delivery
    Supply Ability: 20SETS PER MONTH
    Contact Now
    Detailed Product Description
    Condition: New Type: Screw Conveyor, Pneumatic Conveyor
    Material: Stainless Steel, Stainless Steel 304 / 316 Material Feature: Heat Resistant
    Structure: Conveyor System Voltage: 220/380V
    Power(W): 2.2KW Dimension(L*W*H): Customized Size
    Warranty: 12 Months Usage: Convey
    Feature: Simple Operation Motor: China Standard Motor
    Application: Powder/particle Material Frame Material: Stainless Steel/Carbon Steel
    Load Capacity: 1-5t/h After-sales Service Provided:: No Overseas Service Provided

    304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine

    304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine



    Technical parameter of vacuum conveyor



    Type Capacity (kg/h)

    Motor Power

    (kW)

    Size

    (mm)

    Weight

    (kg)

    ZKS-1 350 1.5 kW 220*570 10
    ZKS-2 700 2.2 kW 220*780 21
    ZKS-3 1500 3.0 kW 290*850 30
    ZKS-4 3000 5.5 kW 420*1150 40
    ZKS-5 5000 / 420*1250 55
    ZKS-6 6000 / 420*1350 70


    Note: We use flour as the test material and all the capacities are measured at the 4 meters conveying distance.

    The longer conveying distance the lower conveying quantity, also the capacity and materials have a great relationship.

    Installation

    1. Fix the hopper of conveyer on the inlet of receiving device. You need to install flange or shelf to fix the vacuum hopper if the receiving device (e.g.Packing machine) is very high. Connect all the parts.

    2. Connect power. You should use “Three-Phase-Five-Wire” system. “Working-0” is for control the circuit, and “Protection-0” is for safety. Another function of “Protection-0” is eliminating the static interference which will cause the system shut down. So “Protection-Zero” is necessary.

    3. Put Φ6 compressed air tube to the inlet(on the filter valve), then adjust the filter valve and ensure the pressure is above 0.6mPa. Connect the compressed air joint on the pump to the joint of vacuum hopper according to the drawing.

    4. Powered on. Feeding time and unloading time on the control panel is available, and the system is in the status of standby.

    5. Adjust the feeding/ unloading time. Set the feeding time in 10s to 30s, and unloading time in 2s to 6s by touching the adjustbottoms..

    6. Push ON/OFF and power on the whirlpool pump. Check the rotation direction of pump. Ensure the running direction of pump is correct.If the rotation direction is opposite, please modify the power lines.

    7. Push the ON/OFF, power on the whirlpool pump, and put the suction into the materials that the feeding cycle is beginning. A whole working cycle contains feeding and unloading(including back-blowing action). The conveyer will go on running until the receiving device (e.g. packing machine) is full of materials. (The light of level meter is available)

    8. When material is below the level meter of receiving device, the pneumatic tee will rotate automatically. The system turns to unloading cycle until all the materials are unloaded. In order to protect the motor and avoid the frequent start-stop, the whirlpool pump will keep on running during the whole working cycle.

    9. Friction will generate static interference during the conveying process. In order to eliminate static interference, you could consider doing the safety earth connection to the equipment.

    10. Vacuum Conveyer uses the new type of film covered filters. This type of filters could increase the capacity of device and extend the service life.It is critical for the capacity of vacuum conveyer to clean the film covered filters. To clean the filters, please follow the suggestions as below:

    a) Blow off the dust attached on the surface of filters by compressed air;

    b) Clean the surface of filters with warm water under 80oC, or after a short soaking. Use the soft brush clean the filter. The hard brush is forbidden, because it may influence the filtering accuracy.

    c) All the filters are ready to use when dried. Filters could be dried naturally. Also you could put the filters into oven below 50oC.



    Application of powder vacuum conveyor machine:

    The machine is especially suitable for conveying all kinds of powdery material,also can be used for conveying all kinds of granular or flake materials.Widely be used in many industries,such as plastic products,food,medicine and etc

    304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine



    Production details





    304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine















    Packaging & Shipping

      1 SET/ POLYWOOD CASE


    304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine

    Our Services


      We mainly export  Vibrating machine, Lifting machine, Conveyor, mainly  in
    powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate Field.


    Company Information


    1. We have very more experience in  export business.
    2. All of our products comply with international quality standards.
    3.We can do customer’s design and requirement
    4. We mainly export to Europe , Americal , South Americal, Africa, the Middle East. Australia, New Zealand etc.
    304 Stainless steel plastic granule / grain / powders pulverizer qutomatic feeding machine



    FAQ


    • QWhat is the MOQ ?
    • A1 Set per item
    • QCan I get a lower price if I order large quantities?
    • AYes, cheaper prices with more bigger size orders.
    • QCan I add or delete items from my order if I change my mind ?
    • AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change
      it. It is about 2 days after confirming the order.
    • QWhen you ship my order?
    • ANormally 7-10days after receiving your payment, but it can be negotiated based on order qty and production schedule.
    • QHow about the quality guarantee period?
    • AOne year!
    • QHow can you guarantee the production quality ?
    • AWe have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
