| Place of Origin: | China |
| Brand Name: | ECHO |
| Certification: | ISO9001 |
| Model Number: | Conveyor-102 |
| Minimum Order Quantity: | 1 Sets |
|---|---|
| Price: | US3000-USD2000 |
| Packaging Details: | 1.Outside: wooden cartons 2. Inside: plastic bag. 3. According customer's require. |
| Delivery Time: | 10-15 DAYS AGAINEST PI |
| Payment Terms: | T/T 40% as deposit , balance before delivery |
| Supply Ability: | 1000 SETS PER MONTH |
| Condition: | New | Type: | Screw Conveyor |
|---|---|---|---|
| Material: | Carbon Steel | Material Feature: | Heat Resistant |
| Structure: | Conveyor System | Load Capacity: | Strong |
| Voltage: | 220/380V | Power(W): | 1.5KW |
| Dimension(L*W*H): | Customized Size | Warranty: | 12 Months |
| Usage: | Convey | Feature: | Simple Operation |
| Motor: | China Standard Motor | Application: | Chemical/ Food / Industrial Etc. Industry |
| Frame Material: | Stainless Steel/Carbon Steel | Capacity: | 10Kg-10Tons/hour |
| After-sales Service Provided:: | No Overseas Service Provided |
Technical Parameters
Screw conveyor are spiral bulk material transportation systems that convey raw ingredients to and from processing areas that are on different levels of a facility. These conveyors are slanted at different angles to economically elevate and convey materials up and down floors. They require ample space and an increased amount of power to lift the material, depending on the steepness of the angle.
♦ Screw conveyor, also called spiral conveyer,auger conveyor,screw feeder,vibrating conveyor,flexible screw conveyor ,etc.
♦ Screw conveyor is designed to transport series materials from one place to another.. Combined with the vibrating screen of our company, it can do material situation tracing, also can be used separately.
♦ This kind screw conveyor can be used to transport series materials of powder, granular or small block in industry, food and environment protection industries, medicine etc.
Technical data:
|
Belt Width (mm) |
Belt Length(m) / Power(kw) |
Belt Speed (m/s) |
||
| 400 | ≤12/1.5 | 12-20/2.2 | 20-25/3 | 0.8-2 |
| 500 | ≤12/3 | 12-20/4 | 20-30/5.5 | 0.8-2 |
| 650 | ≤12/4 | 12-20/5.5 | 20-30/7.5 | 0.8-2 |
| 800 | ≤10/4 | 10-15/5.5 | 15-25/7.5 | 1.0-2 |
| 1000 | ≤10/5.5 | 10-20/7.5 | 20-25/11 | 1.0-2 |
| 1200 | ≤10/7.5 | 10-20/11 | 20-25/15 | 1.0-2 |
Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
Opearting principle:
Belt conveyor mainly composed by two endpoints drum and closed belt . Driven conveyor belt rotating drum called the drive roller ( rotate roller ) ; another change the direction of
movement of the conveyor belt rollers is called bend pulley only . The drive rollers by a motor through a speed reducer driven conveyor belt to rely on the friction drag between the drive
rollers and the conveyor belt . The drive rollers ships are mounted at the discharge end , to increase the traction, and is conducive to drag . Material from the feed end of the feeding ,
falls rotating conveyor belt , relying on the discharge end of conveyor belt friction driven transport bag unloading
Usage:
Brewing
Screw conveyors are used for grain and hops conveying and storage. Special leveling screws can improve storage capacity and efficiency.
Pulp & Paper
Screw presses, mixers and screw conveyors are used for handling paper pulp, wood waste, sawdust, bark chips, wood chips and lime. Mass-flow hoppers and feeder screws are often required.
Mining & Power Production

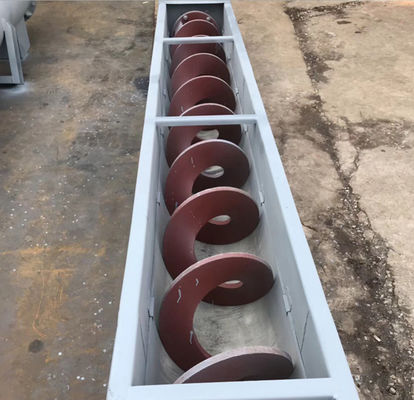

Screws are used for feeding, conveying, mixing and blending salt, coal, lime and other materials. Hollow flight screws and jacketed troughs are often used to cool fly ash after coal is burned. Corrosive salts and wet coal typically require stainless steel materials.
Meat Processing/Rendering
Stainless steel screw conveyors are used for all material handling. This is an ideal application because the product is contained and equipment can be easily washed down.
Sugar
Screw conveyors are used to move both wet and dry sugar products throughout the plant. Large screw presses are used to squeeze juice from sliced sugar beets.
Wastewater Treatment
Post separation from liquids, solids are often conveyed using shaftless 304SS screws which are a very good fit for sticky, gritty, wet materials. Inclined screw conveyors are also often employed to move materials to elevated areas.
Dairy
We have designated areas of our plant for the productions of high quality, 3-A sanitary screw conveyors and mixers for the dairy industry. We also employ even higher QC inspection standards for this type of equipment
Other Industries
Ice, pharmaceuticals, abrasives, contaminated soil, sand, cement, cottonseed, hay, and rice are just a few of the many other products that we have designed screw conveyors and mixers to handle.
Screw Conveyor Advantages
Screw Conveyors are versatile and can be employed in horizontal, inclined and vertical installations as well as multiple screw Live Bottom Feeders.
Screw Conveyors can be sealed for dust free and vapor tight requirements.
A Screw Conveyor can be used for heating and cooling products by utilizing jacketed housings and/or hollow flight screws.
Screw Conveyors can be made out of a variety of materials to make them corrosion resistant, abrasion resistant or heat resistant depending upon the product being conveyed.
They can be outfitted with multiple discharge points offering greater system design flexibility.
A Screw Conveyor can be used as a mixer or agitator to blend dry or fluid ingredients, provide crystallization or coagulant action or maintain solutions in suspension.
Stainless Steel Screw Conveyors can be manufactured to conform to USDA and FDA food grade regulations.
They are compact and easily adapted to congested locations.
Screw Conveyors are often more cost effective than other material handling options such as belt, pneumatic and drag conveyors.
They can be set up as Screw Feeders to control the flow of material in processing operations which depend upon accurate batching.
.
Production details
1 SET/ POLYWOOD CASE
We mainly export Vibrating machine, Lifting machine, mainly in
powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate Field.
1. We have very more experience in export business.
2. All of our products comply with international quality standards.
3.We can do customer’s design and requirement
4. We mainly export to Europe , Americal , South Americal, Africa, the Middle East. Australia, New Zealand etc.
