Place of Origin: | China |
Brand Name: | ECHO |
Certification: | ISO9001 |
Model Number: | Conveyor-57 |
Minimum Order Quantity: | 1 Sets |
---|---|
Price: | US3000-USD2000 |
Packaging Details: | 1.Outside: wooden cartons 2. Inside: plastic bag. 3. According customer's require. |
Delivery Time: | 10-15 DAYS AGAINEST PI |
Payment Terms: | T/T 40% as deposit , balance before delivery |
Supply Ability: | 1000 SETS PER MONTH |
Condition: | New | Type: | Screw Conveyor |
---|---|---|---|
Material: | Carbon Steel | Material Feature: | Heat Resistant |
Structure: | Conveyor System | Load Capacity: | Strong |
Voltage: | 220/380V | Power(W): | 1.5KW |
Dimension(L*W*H): | Customized Size | Warranty: | 12 Months |
Usage: | Convey | Feature: | Simple Operation |
Motor: | China Standard Motor | Application: | Chemical/ Food / Industrial Etc. Industry |
Frame Material: | Stainless Steel/Carbon Steel | Capacity: | 10Kg-10Tons/hour |
After-sales Service Provided:: | No Overseas Service Provided |
Technical Parameters

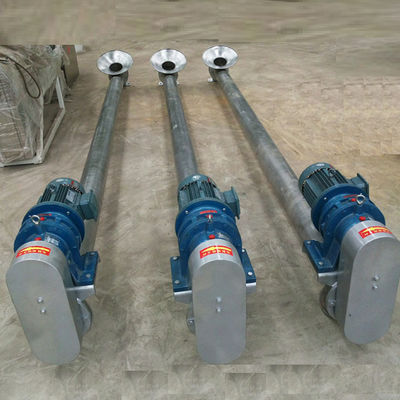

Screw conveyor are spiral bulk material transportation systems that convey raw ingredients to and from processing areas that are on different levels of a facility. These conveyors are slanted at different angles to economically elevate and convey materials up and down floors. They require ample space and an increased amount of power to lift the material, depending on the steepness of the angle.
♦ Screw conveyor, also called spiral conveyer,auger conveyor,screw feeder,vibrating conveyor,flexible screw conveyor ,etc.
♦ Screw conveyor is designed to transport series materials from one place to another.. Combined with the vibrating screen of our company, it can do material situation tracing, also can be used separately.
♦ This kind screw conveyor can be used to transport series materials of powder, granular or small block in industry, food and environment protection industries, medicine etc.
Technical data:
Belt Width (mm) |
Belt Length(m) / Power(kw) |
Belt Speed (m/s) |
||
400 | ≤12/1.5 | 12-20/2.2 | 20-25/3 | 0.8-2 |
500 | ≤12/3 | 12-20/4 | 20-30/5.5 | 0.8-2 |
650 | ≤12/4 | 12-20/5.5 | 20-30/7.5 | 0.8-2 |
800 | ≤10/4 | 10-15/5.5 | 15-25/7.5 | 1.0-2 |
1000 | ≤10/5.5 | 10-20/7.5 | 20-25/11 | 1.0-2 |
1200 | ≤10/7.5 | 10-20/11 | 20-25/15 | 1.0-2 |
Note: The technical parameters above are just for your reference. If there is any change, all parameters and overall dimension are subject to operating instructions. Any questions please feel free to contact us.
Opearting principle:
Belt conveyor mainly composed by two endpoints drum and closed belt . Driven conveyor belt rotating drum called the drive roller ( rotate roller ) ; another change the direction of
movement of the conveyor belt rollers is called bend pulley only . The drive rollers by a motor through a speed reducer driven conveyor belt to rely on the friction drag between the drive
rollers and the conveyor belt . The drive rollers ships are mounted at the discharge end , to increase the traction, and is conducive to drag . Material from the feed end of the feeding ,
falls rotating conveyor belt , relying on the discharge end of conveyor belt friction driven transport bag unloading .
Production details
1 SET/ POLYWOOD CASE
We mainly export Vibrating machine, Lifting machine, mainly in
powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate Field.
1. We have very more experience in export business.
2. All of our products comply with international quality standards.
3.We can do customer’s design and requirement
4. We mainly export to Europe , Americal , South Americal, Africa, the Middle East. Australia, New Zealand etc.
