    Product Details:

    Place of Origin: China
    Brand Name: ECHO
    Certification: ISO9001
    Model Number: ECHO-527

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Sets
    Price: US1000-USD10000
    Packaging Details: 1.Outside: wooden cartons 2. Inside: plastic bag. 3. According customer's require.
    Delivery Time: 7-10DAYS AGAINEST PI
    Payment Terms: T/T 40% as deposit , balance before delivery
    Supply Ability: 1000 SETS PER MONTH
    Material: Carbon Steel/ Stainless Steel 304
    Transducer: Offset
    Delivery Lead time: 10-15 Days
    Characteristic: Chemical, Seeds, Food, Medicinal
    OEM & ODM: Is Accept
    Contact Now
    Detailed Product Description
    Application: Chemicals Voltage: 380V
    Power: 0.55kw/0.75kw/1.5kw/2.2kw/3kw Size: Different Item With Different Size
    Color: Customized Service: 12 Months
    Motor: Vertical Vibrating Motor Capacity: 10Kg-10Tons/hour
    Usage: Fine Particles Screening Function: Screening\separation\sorting\sieving
    Material:: Carbon Steel / 304 Stainless Steel

    1-5 layers High Frequency 1-5 layers High Frequency Rectangular Vibrating Screen For Tea,Tabacoo leaf

    1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf

    Product Description

     Rock salt vibrating sieve, good sales linear vibrating screen, linear vibrating separator




    Production details

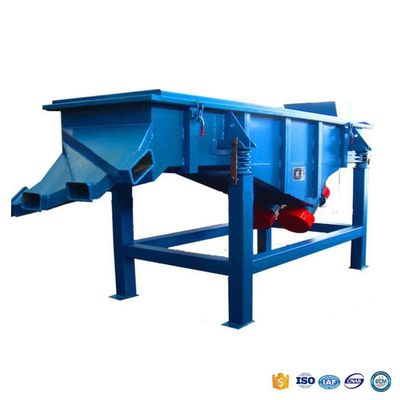

    Describe——linear Vibrating Screen

    ECHO linear Vibrating Screen use excellent vibrating motor as power source,that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the grading, removing impurity, removing dust, testing, washing selecting, dehydration etc.

    Features——linear Vibrating Screen

    1.Easy to operate and maintain.

    2.Low consumption with high yield and low cost.

    3.Fully enclosed structure, automatic layout, more suitable for pipeline operations.

    4.Good sealing without dust flying.

    5.Can be used for single or multi layer.

    6.Material auto discharge, be able to continuous operation.

    7.Every part of the screen box used copper plate and section welded together.

    Working Principle——linear Vibrating Screen

    ECHO Linear vibrating screen uses double vibrating motors to drive,when two motors rotate synchronously and reversely, exciting forces generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction,so its movement track is linear.There is an angle of inclination between the two motor axises relative to the screen deck. Under the influence of the resultant force of exciting force and materiels itself weight,materiels are thrown up to make leapfrog and linear movement forward on the screen deck in order to screen and grade the materiel .Applied in flowing line to achieve automatical operation.

    Model

    Dimension(mm)



    Granularity(mm) Speed(r/min) Amplitude Deck Power(kw)
    EC-520 500*2000 0.074-60 960 4-8 1-4 2*0.75
    EC840 800*4000 0.074-60 960 4-8 1-4 2*1.5
    EC-1030 1000*3000 0.074-60 960 4-8 1-4 2*1.9
    EC-1255 1200*5500 0.074-60 960 4-8 1-4 2*2.2
    EC-1650 1600*5000 0.074-60 960 4-8 1-4 2*3.0

    Application in details——linear Vibrating Screen

    1.Chemical industry: resin pigment, medicine, grease, paint, palette, etc.

    2.Organic fertilizer industry.

    3.Plastics industry.

    4.Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc.

    5.Food industry: sugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.

    6).Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc.

    7.Metallurgy and mining industry: quartz sand, ore, titanium oxide, zinc oxide, etc.

    8.Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc



    soybean milk.1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf

    Detailed Images



    1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf


    Packaging & Shipping

      1 SET/ POLYWOOD CASE


    1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf

    Our Services


      We mainly export  Vibrating machine, Lifting machine, mainly  in
    powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate Field.


    Company Information


    1. We have very more experience in  export business.
    2. All of our products comply with international quality standards.
    3.We can do customer’s design and requirement
    4. We mainly export to Europe , Americal , South Americal, Africa, the Middle East. Australia, New Zealand etc.
    1-5 layers High Frequency  1-5 layers High Frequency  Rectangular Vibrating Screen For Tea,Tabacoo leaf



    FAQ


    • QWhat is the MOQ ?
    • A1 Set per item
    • QCan I get a lower price if I order large quantities?
    • AYes, cheaper prices with more bigger size orders.
    • QCan I add or delete items from my order if I change my mind ?
    • AYes, but you need to tell us asap. If your order has been done in our production line, we cannot change
      it. It is about 2 days after confirming the order.
    • QWhen you ship my order?
    • ANormally 7-10days after receiving your payment, but it can be negotiated based on order qty and production schedule.
    • QHow about the quality guarantee period?
    • AOne year!
    • QHow can you guarantee the production quality ?
    • AWe have strictly quality control system in our production process. We have 4 times inspection for each finished product before package Third part inspection accepxable.
