10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment

10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment

    • 10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment
    • 10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment
    • 10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment
    • 10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment
    • 10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment
  • 10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment

    Product Details:

    Place of Origin: CHINA
    Brand Name: ECHO
    Certification: NO
    Model Number: WL-1010101

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000 KGS
    Price: USD0.36-0.8/KG
    Packaging Details: BAG
    Delivery Time: 15-20 DAYS
    Payment Terms: Western Union
    Supply Ability: 1000 Ton/Tons per Month Walnut Shell Grinder
    Contact Now
    Detailed Product Description
    Material:: Walnut Shell Usage: Polishing
    Appearance: Granular Size: 5#-180#
    Keyword: Abrasive Media Walnut Shell Hardness: 2.5-3.0
    Color: Brown PH Value: 4-6
    Grease: 0.40%

    10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment

    10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment



    Walnut Shell Grinder are excellent soft grit abrasives used in blast cleaning and tumbling. Walnut shell grit is used in applications that require aggressive stripping or cleaning without damage or effect on the underlying subtrate. Organic and biodegradable, walnut shell is extremely durable, angular in shape but considered a soft abrasive.Also used in the oil industry as lost circulation material and as a filter media for cleaning produced water. Available in extra course to extra fine.

    Appearance

    Granular



    Color

    Brown

    Specific Gravity

    1.2-1.4



    Solubility

    Insoluble

    Volumetric Weight

    850kg/m3



    Proportion

    1.2-1.5g/cm3

    Rind Puffing Rate

    3%



    Wear Rate

    ≤1.5 %

    Oil Removal Efficiency

    90-95%



    Void Ratio

    47

    Charring Temperature

    243°C (470°F)



    Bulk Density

    0.8g/cm3

    Backwashing Strength

    25m3/m2.h



    Particle Shape

    Irregular

    Water Flushing Pressure

    0.32MPa



    Filtration Rate

    20-26m/h

    PH at 25°C in neutral water

    4-6



    Oil Content

    0.25%

    Free moisture(80ºC for 15 HRS)

    3-9%



    Hardness

    MOH 2.5-4

    Suspended Solids Removal Rate

    95-98%



    Dilatability

    0.5%



    Size Range:

    Model

    Size (mm)



    Model

    Size (mm)



    6# 3.35-4.00 35# 0.500-0.600
    7# 2.80-3.35 45# 0.355-0.500
    8# 2.36-2.80 60# 0.250-0.355
    10# 2.00-2.36 80# 0.180-0.250
    12# 1.70-2.00 100# 0.150-0.180
    14# 1.40-1.70 120# 0.125-0.150
    16# 1.18-1.40 150# 0.100-0.125
    18# 1.00-1.18 180# 0.080-0.100
    20# 0.850-1.00 200# 0.075-0.080
    25# 0.710-0.850 240# 0.063-0.075
    30# 0.600-0.710 280# 0.050-0.06
    Application

    Walnut Shell Grinder for Polishing:

    Walnut Shell Grinder are used in many polishing and/or deburring applications. Walnut shell media is used for polishing or cleaning fine metals, alloys, mechanical parts, shell cartridges, eye glass lens, rocks, stones, coral, ivory, beans, and seeds.
    Jewelers use walnut shell media treated with rouge in both tumbling and vibratory applications for polishing gems and fine jewelry.
    When polishing the media size should be small enough to freely pass through openings or large enough to avoid lodging in openings or crevices.

    Walnut Shell Grinder for abrasive blasting:

    Walnut Shell Grinder are a type of abrasive blast media used for cleaning. Typical substrates are metals, fiberglass, woods, plastics and stone. The walnut shells are ground to various sizes from coarse to extra fine depending on the application. The walnut shells are used in the same manner as typical blast media. Walnut shells are durable and can be re-used in many applications. Walnut shells can remove matter from surfaces without scratching or pitting underlying material.
    Walnut shell is biodegradable, non-toxic, environmentally safe and cost effective for blasting. Walnut shell does not cause silicosis.

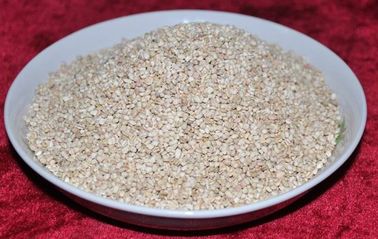

    Details Pictures:

    10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment

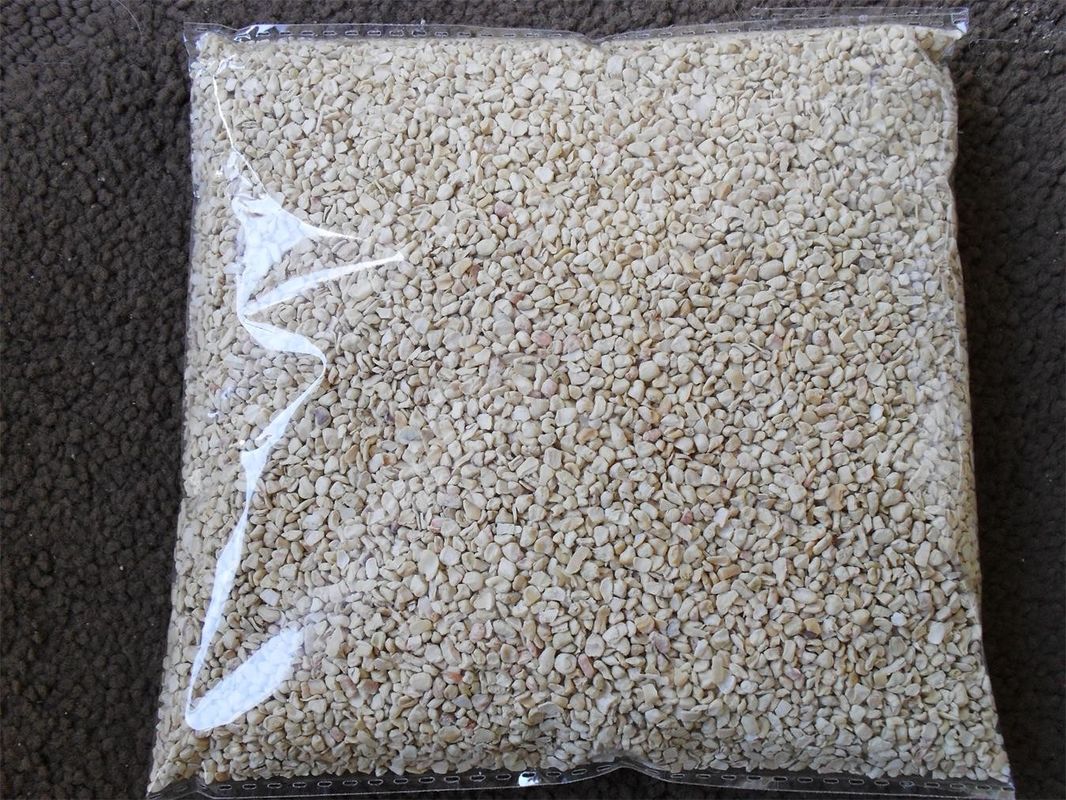

    Package

    10-100 mesh China Manufacturing Walnut Shell Abrasive/ Walnut in Shell for Surface Treatment
