Place of Origin: | CHINA |
Brand Name: | ECHO |
Certification: | NO |
Model Number: | WL-1016 |
Minimum Order Quantity: | 1000 KGS |
---|---|
Price: | USD0.63-0.8/KG |
Packaging Details: | BAG |
Delivery Time: | 15-20 DAYS |
Payment Terms: | Western Union |
Supply Ability: | 1000 Ton/Tons per Month Walnut Shell Grinder |
Material:: | Walnut Shell | Usage: | Polishing |
---|---|---|---|
Appearance: | Granular | Size: | 5#-180# |
Keyword: | Abrasive Media Walnut Shell | Hardness: | 2.5-3.0 |
Color: | Brown | PH Value: | 4-6 |
Grease: | 0.40% |
Walnut Shell Grinder are excellent soft grit abrasives used in blast cleaning and tumbling. Walnut shell grit is used in applications that require aggressive stripping or cleaning without damage or effect on the underlying subtrate. Organic and biodegradable, walnut shell is extremely durable, angular in shape but considered a soft abrasive.Also used in the oil industry as lost circulation material and as a filter media for cleaning produced water. Available in extra course to extra fine.
Appearance |
Granular |
|
Color |
Brown |
Specific Gravity |
1.2-1.4 |
|
Solubility |
Insoluble |
Volumetric Weight |
850kg/m3 |
|
Proportion |
1.2-1.5g/cm3 |
Rind Puffing Rate |
3% |
|
Wear Rate |
≤1.5 % |
Oil Removal Efficiency |
90-95% |
|
Void Ratio |
47 |
Charring Temperature |
243°C (470°F) |
|
Bulk Density |
0.8g/cm3 |
Backwashing Strength |
25m3/m2.h |
|
Particle Shape |
Irregular |
Water Flushing Pressure |
0.32MPa |
|
Filtration Rate |
20-26m/h |
PH at 25°C in neutral water |
4-6 |
|
Oil Content |
0.25% |
Free moisture(80ºC for 15 HRS) |
3-9% |
|
Hardness |
MOH 2.5-4 |
Suspended Solids Removal Rate |
95-98% |
|
Dilatability |
0.5% |
Size Range:
Model |
Size (mm)
|
Model |
Size (mm)
|
6# | 3.35-4.00 | 35# | 0.500-0.600 |
7# | 2.80-3.35 | 45# | 0.355-0.500 |
8# | 2.36-2.80 | 60# | 0.250-0.355 |
10# | 2.00-2.36 | 80# | 0.180-0.250 |
12# | 1.70-2.00 | 100# | 0.150-0.180 |
14# | 1.40-1.70 | 120# | 0.125-0.150 |
16# | 1.18-1.40 | 150# | 0.100-0.125 |
18# | 1.00-1.18 | 180# | 0.080-0.100 |
20# | 0.850-1.00 | 200# | 0.075-0.080 |
25# | 0.710-0.850 | 240# | 0.063-0.075 |
30# | 0.600-0.710 | 280# | 0.050-0.06 |
Walnut Shell Grinder are used in many polishing and/or deburring applications. Walnut shell media is used for polishing or cleaning fine metals, alloys, mechanical parts, shell cartridges, eye glass lens, rocks, stones, coral, ivory, beans, and seeds.
Jewelers use walnut shell media treated with rouge in both tumbling and vibratory applications for polishing gems and fine jewelry.
When polishing the media size should be small enough to freely pass through openings or large enough to avoid lodging in openings or crevices.
Walnut Shell Grinder are a type of abrasive blast media used for cleaning. Typical substrates are metals, fiberglass, woods, plastics and stone. The walnut shells are ground to various sizes from coarse to extra fine depending on the application. The walnut shells are used in the same manner as typical blast media. Walnut shells are durable and can be re-used in many applications. Walnut shells can remove matter from surfaces without scratching or pitting underlying material.
Walnut shell is biodegradable, non-toxic, environmentally safe and cost effective for blasting. Walnut shell does not cause silicosis.

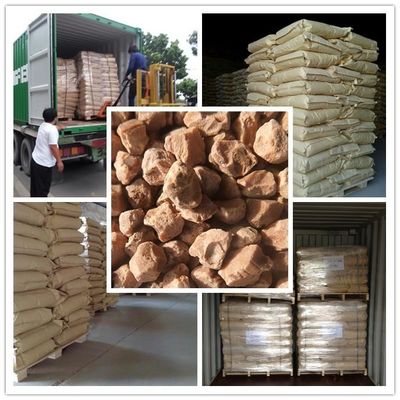

Details Pictures:
