| Place of Origin: | China |
| Brand Name: | Vibrating Screen Machine |
| Certification: | ISO9001 |
| Model Number: | Vitrating Screen Machine |
| Minimum Order Quantity: | 1 Sets |
|---|---|
| Price: | US500-USD1500 |
| Packaging Details: | 1.Outside: wooden cartons 2. Inside: plastic bag. 3. According customer's require. |
| Delivery Time: | 7-10DAYS AGAINEST PI |
| Payment Terms: | T/T 40% as deposit , balance before delivery |
| Supply Ability: | 1000 SETS PER MONTH |
| Material: | Carbon Steel/ Stainless Steel 304 |
| Transducer: | Offset |
| Delivery Lead time: | 10-15 Days |
| Characteristic: | Chemical, Seeds, Food, Medicinal |
| OEM & ODM: | Is Accept |
| Application: | Vibrating Screen Machine | Voltage: | 220V/380V/415V/450V |
|---|---|---|---|
| Power: | 0.55kw/0.75kw/1.5kw/2.2kw/3kw | Size: | Different Item With Different Size |
| Color: | Customized | Service: | 12 Months |
| Motor: | Vertical Vibrating Motor | Capacity: | 100kg-500kg/h |
| Usage: | Separation Screening | Function: | Screening\separation\s\granding\sieving |
| Material:: | 304 Stainless Steel |

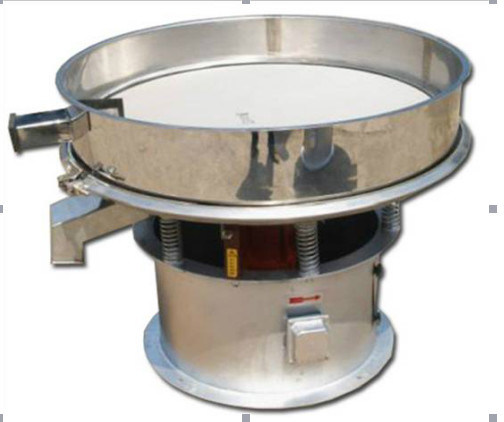

High Frequency Round Single Deck Food Malt Flour Soybean Milk Separator Filter Vibrating Sieve Machine
Vibration Filter Introduction
Vibration filter machine SY-450 type vibration filter is a new and highly-efficiente filtrate equipment.it can be widely used in the filting and screening work of pasty,powder.The minimum size of the material to process can be 5 micron.And the maximum number of the mesh is 400.Mainly aplicates the small process capacity industry ,like ceramic,painting,dope,printing ink,pharmacy , food and etc.450 type machine consists of machine body,vibrating motor,outlet hopper,sieve griddle,e-control device. The machine adope a new vibration structure which is more stable ,hi-eficient and easily handled.the machine has a good-look,reasonable structure ,stable performance and is easily griddle handled,cleaned and its griddle is easily changed.eapecilly ,it can satisfy the need of changely location..
| Model |
Availability of screening area (m*m) |
Screen slope (angel) | Grain size(mm) | Frequency(r/min) | Double amplitude(mm) | Power(kw) | Process capacity(t/h) |
| HXSY-600 | 0.292 | 0-10 | ≤100 | 5-8 | 0.25 | 6-10 | |
| HXSY 2.2-1000 | 0.785 | 0-10 | ≤100 | 5-8 | 1.5 | 8-5 | |
| HXSY -1200 | 1.13 | 0-10 | ≤100 | 750 | 5-8 | 2.2 | 15-30 |
| HXSY -1600 | 1.83 | 0-10 | ≤100 | 960 | 5-8 | 2.2 | 25-50 |
| HXSY -2000 | 2.63 | 0-10 | ≤100 | 1500 | 5-8 | 4.0 | 30-60 |
| HXSY -2600 | 5.31 | 0-10 | ≤100 | 5-8 | 5.5 | 45-60 |
Features
SY-450 series screen~filter is a hi-efficient ,low noise,small valum screen and filtration machine which can be displaced easily. The process capacity of the spray-painting material whose bulk density is 1.1t can reach 1200 KL/H,when the screen is of 325mesh.the process capacity of the flour is 700 Kg/H,when the screen is of 30mesh..To the indoor paint,the process capacity is 1.5 cubic meter per hour with a screen of 250mesh..
Application
The machine was widely adopted in the food,ceramic,pharmarcy,chemical,painting,metallurgy and etc,Also had the successful application in the brand name nosheries and their chain delivery center to screen and filtrate the flour, bread floure, juice of vegetable and fruit and soybean milk.
soybean milk.
Detailed Images
1 SET/ POLYWOOD CASE
We mainly export Vibrating machine, Lifting machine, mainly in
powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate Field.
1. We have very more experience in export business.
2. All of our products comply with international quality standards.
3.We can do customer’s design and requirement
4. We mainly export to Europe , Americal , South Americal, Africa, the Middle East. Australia, New Zealand etc.
