| Place of Origin: | China |
| Brand Name: | ECHO |
| Certification: | ISO9001 |
| Model Number: | Conveyor |
| Minimum Order Quantity: | 1 Sets |
|---|---|
| Price: | USD1000-USD3000 |
| Packaging Details: | 1.Outside: wooden cartons 2. Inside: plastic bag. 3. According customer's require. |
| Delivery Time: | 10-15 DAYS AGAINEST PI |
| Payment Terms: | T/T 40% as deposit , balance before delivery |
| Supply Ability: | 1000 SETS PER MONTH |
| Condition: | New | Type: | Screw Conveyor |
|---|---|---|---|
| Material: | Carbon Steel | Material Feature: | Heat Resistant |
| Structure: | Conveyor System | Load Capacity: | Strong |
| Voltage: | 220/380V | Power(W): | 1.5KW |
| Dimension(L*W*H): | Customized Size | Warranty: | 12 Months |
| Usage: | Convey | Feature: | Simple Operation |
| Motor: | China Standard Motor | Application: | Grain |
| Frame Material: | Stainless Steel/Carbon Steel | Capacity: | 1-191 |
| After-sales Service Provided:: | No Overseas Service Provided |
Technical Parameters
Description

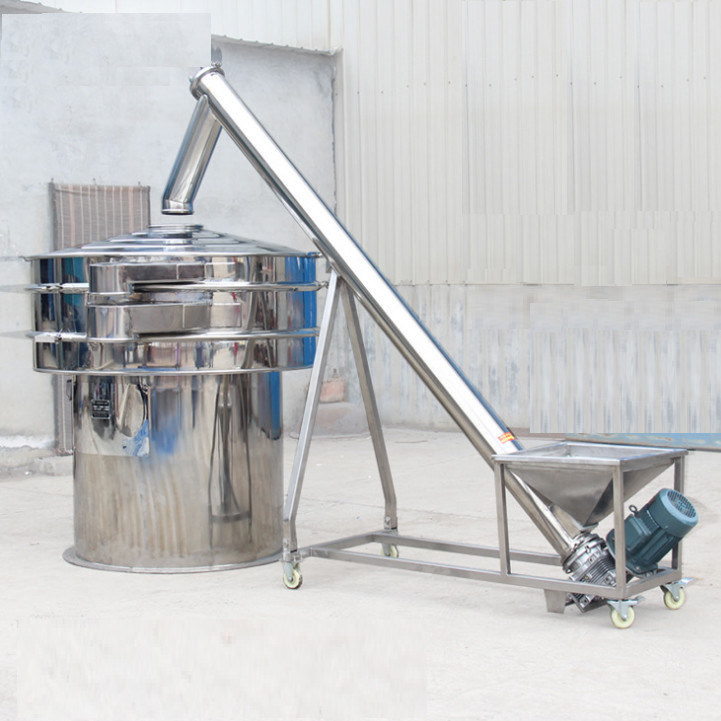

This machine can convey many different materials, like dry powder,such as coffee powder, wheat flour, condiment and it also fits for some small batches. Combining with the packaging machine, we can present you situation tracing with the above material. It can also be used separately. The whole machine are made of stainless steel (also can be made by carbon steel) of 304 except for the motor.
EC Series Screw Conveyor
1. It separates and transports sands spirally. It is light because of no underwater bearing which makes its maintenance more convenient.
2. The adoption of new decelerator makes the structure very compact, the operation smooth and the installation more convenient.
3. The using of the flexible bars in tube, which are wear-resisting, makes the separator work with lower noise, and replace of these bars easily.
4. The whole set enjoys simple installation and easy operation
Technical parameter
|
model Model |
screw diameter (mm) |
Screw pitch (mm) |
rotational speed of screw (r/min) |
convey measure (m3/h) |
motor power (kw) |
max dip angle (o ) |
| LS-100 | 100 | 100 |
140 125 112 100 90 80 71 63 50 40 |
2.2 | 2.2~18.5 | ≤20 |
| LS-125 | 125 | 125 | 4.0 | |||
| LS-160 | 160 | 160 | 8 | |||
| LS-200 | 200 | 200 | 11 | |||
| LS-250 | 250 | 250 | 22 | |||
| LS-315 | 315 | 315 | 34 | |||
| LS-400 | 400 | 355 | 64 | |||
| LS-500 | 500 | 400 | 95 | |||
| LS-630 | 630 | 450 | 150 | |||
| LS-800 | 800 | 500 | 210 |
Application
Screw machine has been widely used in various departments of the national economy, such as building material, metallurgy, chemical industry, electric power, coal, machinery, light industry, food and the food industry, is suitable for conveying powder, granulated and small lump materials, such as cement, coal, grain, chemical fertilizer, ash, sand, coke, etc. Should not be transporting perishable materials, big viscosity, easy to agglomerate, LS screw conveyor working environment temperature is usually - 20 ~ 40 ℃, the temperature of the conveying material is commonly - 20 ~ 80 ℃, the LS screw conveyor is suitable for level and layout of the small Angle, inclination Angle with no more than 15 ° advisable, such as Angle is too large, please choose GX series screw conveyor, or contact us.
Production details
1 SET/ POLYWOOD CASE
We mainly export Vibrating machine, Lifting machine, mainly in
powder, starch, flour, rice flour, carbon powder, graphite powder, manganese powder, lithium carbonate Field.
1. We have very more experience in export business.
2. All of our products comply with international quality standards.
3.We can do customer’s design and requirement
4. We mainly export to Europe , Americal , South Americal, Africa, the Middle East. Australia, New Zealand etc.
