| Place of Origin: | China |
| Brand Name: | Echo |
| Certification: | ISO14001:2004 |
| Model Number: | EC-0610069 |
| Minimum Order Quantity: | 500 rolls per order |
|---|---|
| Price: | USD0.016-0.039/METER |
| Packaging Details: | 64 PCS PER CARTON |
| Delivery Time: | 3 DAYS AGAINEST PI |
| Payment Terms: | T/T 100% AGAINEST |
| Supply Ability: | 1000000 ROLLS PER MONTH |
| Specification: | Width: 8mm, 10mm, 12mm, Length: 1000m, 12000m |
| Temperature range: | 100-140oc |
| Color:: | black.red,blue etc |
| Characteristic: | Low viscosity and good font ,wide range |
| OEM & ODM: | Is Accept |
| Application: | PE Pipe, Plastic Pipe, Cable, Wire | Material: | PP,PE,PET, |
|---|---|---|---|
| Type: | Generic | Color: | White,Blue,Black,Yellow |
| Usage: | Coding | Function: | Transfer Printing |
| Certificate: | ISO14001:2004 | Size: | Meet Ur Requirement |
| Payment Terms:: | T/T |

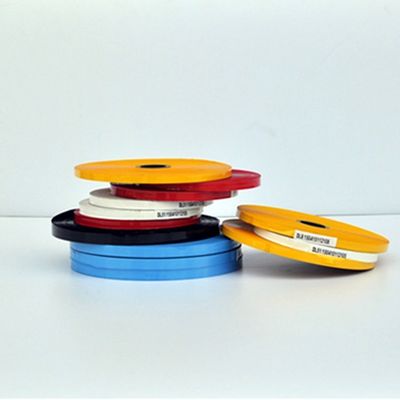

Wholesale black and white 8mm 10mm PE pipe plastic pipe wire and cable metering ribbonis suitable for the printing of the factory name,label,type,specification,time on the PVC and PE cable and plastic pipe.
The printing effect can meet the repuirement of the imported products.
| Specifications |
width 5,6,7,8,9,10,12,15 (mm); length 500, 800, 1000, 1500, 2000 (m). |
| Temperature range:: | 90-110 (°C). |
| Color: | black.red,blue etc |
| Characteristic | Low viscosity and good font ,wide range,apply for printing on paper,AL,PP,PET,PE,PVC,material etc |
Thermal transfer ribbon product specification
Name: DL52 cable belt
Application field
Applicable to all kinds of cables, rubber products, etc. for date code.
Technical Parameters
1. Appearance: The layer is even and the hiding power is good.
2, color: black, white, red, yellow, blue.
3, hot stamping temperature: 90-110 (°C).
4, the characteristics of the imprint: the imprint is full and round, not easy to fall off.
5, product specifications: width 5,6,7,8,9,10,12,15 (mm); length
500, 800, 1000, 1500, 2000 (m).
6, the core diameter: 26 ± 1 (mm).
7, thickness: base film thickness 12 (um); coating thickness 8 ± 1 (um); total thickness 20 ± 1
(um).
8. Tensile strength: ≥50 (MPA).
9, elongation at break: ≥ 30%.
Note: Special colors can be customized.
Performance characteristics
1. The printed characters are round and full, and the hiding power is moderate.
2, the printing handwriting has good anti-friction effect, and it can't be scorned.
Routine testing standards:
1, printing effect: temperature 120 ° C -150 ° C, pressure 2KG conditions, pneumatic
Cable printer printing, soft plastic, rubber products print clearly, full and round handwriting;
2, adhesion: 20 times (with 1.0Kg cylindrical iron rod end of a layer of A4 paper water
Flat rubbing prints, the number of rubbing before the missing marks); tape paper paste, open
There are defects in the writing, but it is still legible.
Product storage and shelf life:
Store in a cool, dry place; shelf life is one year.
Description:
This product is made of imported high-quality raw materials, carefully developed, processed and produced by thermal transfer meter
Printing tape. It has the advantages of clear printing, firmness, stable performance and convenient use. Suitable for
Communication cables, optical cables, and surface printing and metering of various plastic pipes.
Precautions:
This ribbon is not suitable for printing on hard materials such as ABS, if it is required on such materials.
Use, consider increasing the printing pressure.
packing into cartons
We mainly export hot coding foil and thermal transfer ribbon, hot ink roll
And we can produce the products accoding to your requirement
1. We have very more experience in import and export business.
2. All of our products comply with international quality standards.
3.We can do customer’s design and requirement
4. We mainly export to Europe , Americal , South Americal, Africa, the Middle East. Australia, New Zealand etc.
1) Q: Can you provide free samples for view quality of your products?
A: Yes , We are honor to provide sample for you see the quality .
2) Q: What is your MOQ:
A: Our MOQ is 1000 rolls per order
3) Q: How long you can delivery the goods out after signed contract?
A: Usually 3-5days.
